Engineered for High-Output Pro Cooking & Bespoke Integration
The SINDA H0148 48-Inch Range Hood Insert is an architectural-grade ventilation designed to integrate flush within custom cabinetry, plaster, or bespoke metal canopies. Fabricated from heavy-duty 304 stainless steel, it delivers 1150 CFM of dual-centrifugal extraction—specifically calibrated to capture intense heat, grease, and smoke plumes from professional gas ranges without disrupting living spaces.
Core Engineering & Performance
-
Powerful 1150 CFM Ventilation: Dual balanced internal motors generate high static pressure to capture high-BTU searing and wok smoke across the entire cooking surface.
-
Delayed Auto-Off & Adjustable Lighting: Equipped with a 3-minute delayed auto shut-off to clear residual odors post-cooking, alongside dimmable energy-efficient LED cooktop illumination.
-
Commercial-Grade 304 Stainless Steel Construction: Made of commercial-grade 304 stainless steel with a fully welded seamless design for durability and a clean built-in look.
-
Dishwasher-Safe Stainless Steel Baffle Filters: The stainless steel baffle filters are designed to capture grease effectively while staying easy to maintain. Simply remove the filters and place them in the dishwasher for quick, hassle-free cleaning.
Contractor & Cabinetmaker Installation Note
Mounting Clearance: Recommended mounting height is 30" to 36" above the cooking surface for optimal smoke capture and safety clearance.
Ducting Requirement: To preserve 1150 CFM airflow and minimize acoustic turbulence, smooth, rigid 8-inch metal ductwork is strongly recommended.

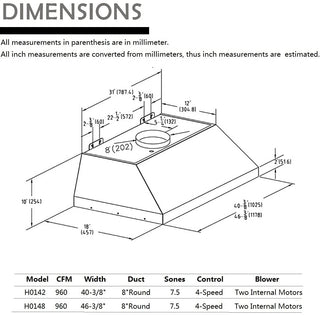

Cabinet Opening: Always verify your cabinet framing and cut-out dimensions against the product spec sheet before cutting into cabinetry or drywall.
Performance & Design Highlights
Clear The Kitchen Air
Excessive smoke and odor make the kitchen become the main source of poor indoor air quality. Effective ventilation is essential to keep the house healthy.
|
Dishwasher-Safe
Commercial-grade stainless steel baffle filters capture grease efficiently and are fully dishwasher-safe for low-maintenance upkeep.
|
Low Noise
Whisper-quiet operation at lower speeds, maintaining optimal kitchen conversational comfort while handling high-heat cooking.
|

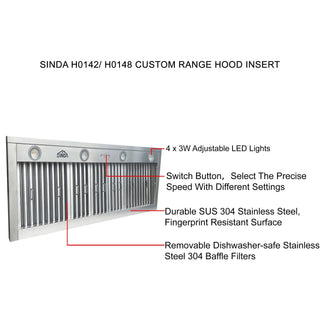

Adjustable LED Lights
Three LED dimmable lighting lets you choose the appropriate light for your cooking situation.
|
General
| Installation Type |
Built-in |
| Air Circulation |
Ducted |
| Type of Control |
Electronic Control Panel (Push Button) |
Features
| Body Design |
Seamless Stainless Steel, Satin Finish |
| Custom Insert |
√ |
| Removable Grease Filter(s) |
√ |
| Grease Filter Material |
Dishwasher-safe Stainless Steel |
| Fan Speed Control |
4-Speed |
Technical Specifications
| Power Rating |
120V / 60HZ |
| Round Duct |
8” |
| Weight |
76.2 lbs |
| ELT Listed |
ETL Listed (UL 507 & CSA C22.2 No. 113 Certified) |
| Airflow |
460CFM
765CFM
915CFM
1150CFM |
| Noise Level |
1.5Sone (46dB)
3.5Sone (58dB)
5.5Sone (64dB)
7.5Sone (69dB) |
| Wattage |
240W (Delayed Power Auto Shut Off) |
| Motor |
Dual Motors
|
Warranty
| Hood Liner / Insert |
2-Year Limited Warranty |
| Motor / Blower |
10-Year Limited Warranty
|
