SIZE GUIDE

WALL MOUNT RANGE HOOD

size guide copper stainless steel custom vent hood range hood

  • Hood Width: Wall mount range hood should be as wide OR 3"- 6" wider than your cook-top.
  • Hood Height: Wall mount range hood height should be 30" - 36" above your cook-top (33" is recommended).

          Range Hood Height = Ceiling Height - Stove Height - (30" to 36")

  • Hood Depth: Standard wall mount range hood is 21" or 24" deep.
    ------------------------------------------------------------------------------------------------------------

    ISLAND MOUNT RANGE HOOD

    custom vent hood size guide copper stianless steel range hood sinda

    • Hood Width: Island mount range hood should be 6" wider than your cook-top.
    • Hood Height: Island mount range hood height should be 30" - 36" above your cook-top (33" is recommended).
    • Hood Depth: Standard island mount range hood is 27" deep.

              Range Hood Height = Ceiling Height - Stove Height - (30" to 36")

    ** Custom hood sizes are available, please email us at support@sindacopper.com

    ***Before purchasing a range hood make sure you measure the space.





    VENTILATION

    vent style



    • SINDA offers five ventilation options for you to choose from:

      • Internal Motor (Motor In Hood): Integrated ventilation system with motor and liner inside the range hood.
      • Remote Blower (Motor In Attic): The motor is not in the hood itself but positioned inside your ductwork, between the range hood and the end of your ducting. The remote blower is much quieter than the internal motor.
      • Recirculating Through Hood (Ductless Conversion): Recirculating cooker hoods recycle air back into the kitchen after removing grease and cooking odors, remote controller is included in the package.
      • Hood Only (Design To Fit): Please send the vent specs (or vent brand and model) to us by email after ordering, and we will check for you if it is compatible with the hood cover.
      • Liner Only (Without Motor): Liner with lights, switches, and stainless steel baffle filters. If you would like to select this option, please contact us.

    SPECIFICATIONS

    sinda internal motor specs

    sinda remote blower specs

    sinda ductless range hood specs

    APRON PATTERN



    sinda

    APRON PATTERN PLACEMENT

     pattern placement





    FINISH

    SINDA will provide free finish sample to ensure you get the actual colors and textures of copper products.

    Order free sample, please click here.



    ainda copper range hood copper sinks finish



      If you have any custom ideas, drawings and questions, please feel free contact us.

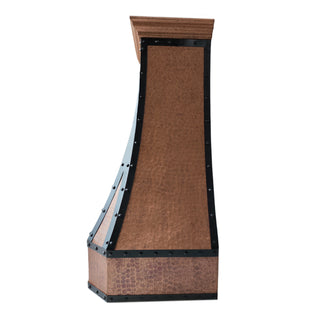

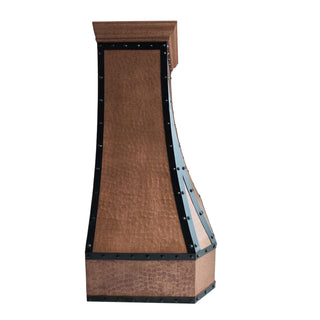

      The Classic Copper Range Hood - H3TR2-A by SINDA exemplifies masterful craftsmanship. Drawing inspiration from classic H3TR2 styling while incorporating vintage copper and apron designs has resulted in an overall rustic aesthetic that caters perfectly to current trends. The inclusion of oil-rubbed bronze straps serves both as an elegant finishing touch and as an effective means of delineating different sections of the custom range hood.

      Each product at SINDA is meticulously designed and comes with extensive customization options allowing you either choose our design or unleash your creativity according to personal preferences.

      Beyond its stunning visual appeal lies formidable functionality within this range hood which should not be underestimated. A diverse array of ventilation options ensures there’s always one suited precisely to individual requirements, while maintaining powerful suction alongside minimal noise levels—enabling smoke-free and quite cooking environments.

      For over the decades, SINDA has been dedicatedly immersed in tailoring custom range hoods through continuous exploration and innovation—all aimed at enriching every customer’s lifestyle commencing right from their kitchens. Uncover your kitchen’s allure with SIDNA.

      Size

      • Width: Please choose the width of your copper range hood to begin.
      • Height: Please choose the height you want after you choose the width.
      • Custom: If you want to order other sizes, welcome to customize. Please email us at support@sindacopper.com





      Ventilation Options  (Please choose from 4 types of systems)

      • Internal Motor(Motor In Hood): Integrated ventilation system with motor and liner inside the range hood.
      • Remote Blower(Motor In Attic): The motor is not in the hood itself but positioned inside your ductwork, between the range hood and the end of your ducting. The remote blower is much quieter than the internal motor.
      • Recirculating Through Hood (Ductless Conversion): Recirculating cooker hoods recycle air back into the kitchen after removing grease and cooking odors, remote controller is included in the package.
      • Hood Only: Please send the dimension or specification of the vent to us by email after ordering, we will check for you if it is compatible with the hood cover.

      sinda vent

      You may click here for more information about copper range hoods.



      Download:

      SINDA Copper Range Hood Installation Guide

      SINDA Insert Installation Guide and User Manual



      • For more information about Liner + Internal Motor, please click here.
      • For more information about Liner + Remote Blower, please click here.
      • For more informaton about Liner + Internal Motor + Ductless Conversion Kit, please click here.

      Care

      About SINDA copper products:
      • Our copper product has been treated with a clear lacquer sealant that is tarnish resistant.
      • Do not use copper polish/cleaners, abrasive materials, acidic or abrasive cleaners or harsh chemicals such as acetone, which will compromise the integrity of the integrity of the lacquer finish.

      Items you will need:
      • Mild non-acidic liquid detergent or soap
      • Soft non-abrasive cotton cloth
      • Warm water

      Maintenance process:

      Use warm water, mild non-acidic liquid detergent or soap and soft non-abrasive cotton cloth to remove any grease or grime.

      Warranty

      Sinda Copper offers the following warranty from the date of purchase:
      • The lifetime warranty for copper hood cover

      • 2–year limited warranty for the hood liner/insert

      • 10–year limited warranty for the motor/blower

      • 1-year limited warranty for the copper kitchen sink

      SINDA Classic Copper Range Hood - H3TR2-A

      SKU: H3TR2-A
      Regular price $2,583.00
      Unit price
      per
      Shipping calculated at checkout.

      Handcrafted From 16 Gauge Solid Copper

      Need help? Contact us

      Free Shipping On All Orders
