SIZE GUIDE
WALL MOUNT RANGE HOOD
- Hood Width: Wall mount range hood should be as wide OR 3"- 6" wider than your cook-top.
- Hood Height: Wall mount range hood height should be 30" - 36" above your cook-top (33" is recommended).
Range Hood Height = Ceiling Height - Stove Height - (30" to 36")
- Hood Depth: Standard wall mount range hood is 21" or 24" deep.
- Hood Width: Island mount range hood should be 6" wider than your cook-top.
- Hood Height: Island mount range hood height should be 30" - 36" above your cook-top (33" is recommended).
- Hood Depth: Standard island mount range hood is 27" deep.
Range Hood Height = Ceiling Height - Stove Height - (30" to 36")
** Custom hood sizes are available, please eamil us at support@sindacopper.com
***Before purchasing stainless steel range hood make sure you measure the space.

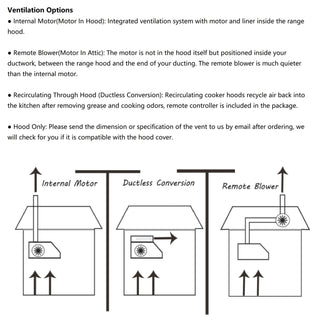

VENTILATION
-
SINDA offers five ventilation options for you to choose from:

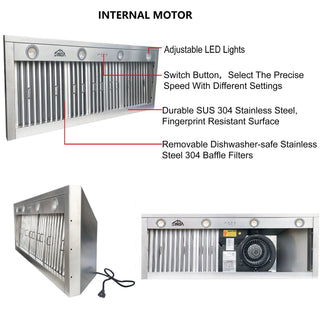

- Internal Motor (Motor In Hood): Integrated ventilation system with motor and liner inside the range hood.
- Remote Blower (Motor In Attic): The motor is not in the hood itself but positioned inside your ductwork, between the range hood and the end of your ducting. The remote blower is much quieter than the internal motor.
- Recirculating Through Hood (Ductless Conversion): Recirculating cooker hoods recycle air back into the kitchen after removing grease and cooking odors, remote controller is included in the package.
- Hood Only (Design To Fit): Please send the vent specs (or vent brand and model) to us by email after ordering, and we will check for you if it is compatible with the hood cover.
- Liner Only (Without Motor): Liner with lights, switches, and stainless steel baffle filters. If you would like to select this option, please contact us.

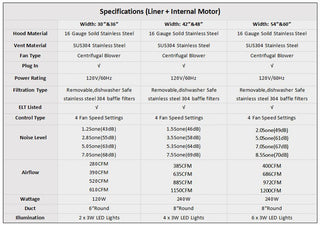

SPECIFICATIONS
FINISH
SINDA will provide free finishes samples to ensure you get the actual colors of stainless steel range hoods.
Order free sample, please click here.
STRAPS & RIVETS
MOUTING OPTIONS
- Under cabinet range hood - They are mounter to the underside of a cabinet situated above your range.
- Wall mount range hood - This type is mounted to the wall above. This is the right option for if there is no cabinets set above your range.
- Island mount range hood - This type of range hood mounting style is the best way to ventilate your kitchen if you have an island cook-top. They are mounted to the ceiling above your island.
If you have any custom ideas, drawings and questions, please feel free contact us.
