SIZE GUIDE

WALL MOUNT RANGE HOOD

  • Hood Width: Wall mount range hood should be as wide OR 3"- 6" wider than your cook-top.
  • Hood Height: Wall mount range hood height should be 30" - 36" above your cook-top (33" is recommended).

          Range Hood Height = Ceiling Height - Stove Height - (30" to 36")

  • Hood Depth: Standard wall mount range hood is 21" or 24" deep.
    ISLAND MOUNT RANGE HOOD
    • Hood Width: Island mount range hood should be 6" wider than your cook-top.
    • Hood Height: Island mount range hood height should be 30" - 36" above your cook-top (33" is recommended).
    • Hood Depth: Standard island mount range hood is 27" deep.

    Range Hood Height = Ceiling Height - Stove Height - (30" to 36")

    ** Custom hood sizes are available, please eamil us at support@sindacopper.com

    ***Before purchasing a range hood make sure you measure the space.

    size guide sinda custom range hood copper stainless steel



    VENTILATION

    vent style



    • SINDA offers five ventilation options for you to choose from:

      • Internal Motor (Motor In Hood): Integrated ventilation system with motor and liner inside the range hood.
      • Remote Blower (Motor In Attic): The motor is not in the hood itself but positioned inside your ductwork, between the range hood and the end of your ducting. The remote blower is much quieter than the internal motor.
      • Recirculating Through Hood (Ductless Conversion): Recirculating cooker hoods recycle air back into the kitchen after removing grease and cooking odors, remote controller is included in the package.
      • Hood Only (Design To Fit): Please send the vent specs (or vent brand and model) to us by email after ordering, and we will check for you if it is compatible with the hood cover.
      • Liner Only (Without Motor): Liner with lights, switches, and stainless steel baffle filters. If you would like to select this option, please contact us.

    SPECIFICATIONS

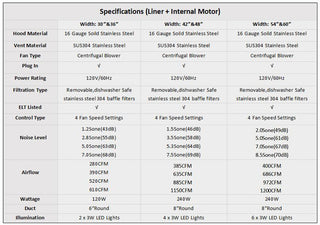

    sinda internal motor specs

    sinda remote blower specs

    sinda ductless range hood specs

    APRON PATTERN



    sinda

    APRON PATTERN PLACEMENT

     pattern placement





    FINISH

    SINDA will provide free finish sample to ensure you get the actual colors and textures of copper products.

    Order free sample, please click here.



    ainda copper range hood copper sinks finish



      If you have any custom ideas, drawings and questions, please feel free contact us.

      This H7TRA2 tuscan copper range hood is one of our most special design.  It is also easy to install and can be custom made to your specifications. Featuring three side, three classic straps with exquisite rivets on the front and customizable apron.

      A kitchen is a place the family gathers every day. Why not add some color to turn your kitchen into a gourmet paradise?

      SINDA copper range hood is not only the jewelry in your kitchen but also an important appliance to help your remove smoke, odor, and grease from the air in your kitchen.

      Therefore you and your family can breathe easier and you can cook more comfortably.

      Size

      • Width: Please choose the width of your copper range hood to begin.
      • Height: Please choose the height you want after you choose the width.
      • Custom: If you want to order other sizes, welcome to customize. Please email us at support@sindacopper.com

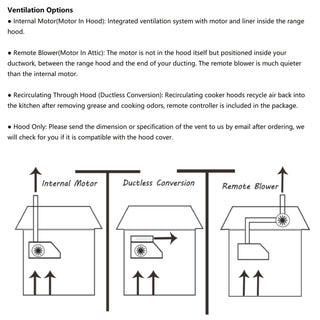

      Ventilation Options  (Please choose from 4 types of systems)

      • Internal Motor(Motor In Hood): Integrated ventilation system with motor and liner inside the range hood.
      • Remote Blower(Motor In Attic): The motor is not in the hood itself but positioned inside your ductwork, between the range hood and the end of your ducting. The remote blower is much quieter than the internal motor.
      • Recirculating Through Hood (Ductless Conversion): Recirculating cooker hoods recycle air back into the kitchen after removing grease and cooking odors, remote controller is included in the package.
      • Hood Only: Please send the dimension or specification of the vent to us by email after ordering, we will check for you if it is compatible with the hood cover.

      sinda vent

      You may click here for more information about copper range hoods.



      Download:

      SINDA Copper Range Hood Installation Guide

      SINDA Insert Installation Guide and User Manual



      • For more information about Liner + Internal Motor, please click here.
      • For more information about Liner + Remote Blower, please click here.
      • For more informaton about Liner + Internal Motor + Ductless Conversion Kit, please click here.

      Care

      About SINDA copper products:
      • Our copper product has been treated with a clear lacquer sealant that is tarnish resistant.
      • Do not use copper polish/cleaners, abrasive materials, acidic or abrasive cleaners or harsh chemicals such as acetone, which will compromise the integrity of the integrity of the lacquer finish.

      Items you will need:
      • Mild non-acidic liquid detergent or soap
      • Soft non-abrasive cotton cloth
      • Warm water

      Maintenance process:

      Use warm water, mild non-acidic liquid detergent or soap and soft non-abrasive cotton cloth to remove any grease or grime.

      Warranty

      Sinda Copper offers the following warranty from the date of purchase:
      • The lifetime warranty for copper hood cover

      • 2–year limited warranty for the hood liner/insert

      • 10–year limited warranty for the motor/blower

      • 1-year limited warranty for the copper kitchen sink

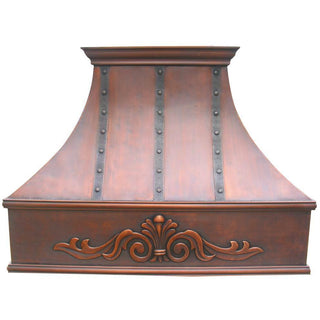

      SINDA Tuscan Copper Range Hood - H7TRA2

      SKU: H7TRA2
      Regular price $2,583.00
      Unit price
      per

      Handcrafted From 16 Gauge Solid Copper

      Need help? Contact us

      Free Shipping On All Orders

      SIZE GUIDE

      WALL MOUNT RANGE HOOD

      • Hood Width: Wall mount range hood should be as wide OR 3"- 6" wider than your cook-top.
      • Hood Height: Wall mount range hood height should be 30" - 36" above your cook-top (33" is recommended).

                Range Hood Height = Ceiling Height - Stove Height - (30" to 36")

      • Hood Depth: Standard wall mount range hood is 21" or 24" deep.
        ISLAND MOUNT RANGE HOOD
        • Hood Width: Island mount range hood should be 6" wider than your cook-top.
        • Hood Height: Island mount range hood height should be 30" - 36" above your cook-top (33" is recommended).
        • Hood Depth: Standard island mount range hood is 27" deep.

        Range Hood Height = Ceiling Height - Stove Height - (30" to 36")

        ** Custom hood sizes are available, please eamil us at support@sindacopper.com

        ***Before purchasing a range hood make sure you measure the space.

        size guide sinda custom range hood copper stainless steel



        VENTILATION

        vent style



        • SINDA offers five ventilation options for you to choose from:

          • Internal Motor (Motor In Hood): Integrated ventilation system with motor and liner inside the range hood.
          • Remote Blower (Motor In Attic): The motor is not in the hood itself but positioned inside your ductwork, between the range hood and the end of your ducting. The remote blower is much quieter than the internal motor.
          • Recirculating Through Hood (Ductless Conversion): Recirculating cooker hoods recycle air back into the kitchen after removing grease and cooking odors, remote controller is included in the package.
          • Hood Only (Design To Fit): Please send the vent specs (or vent brand and model) to us by email after ordering, and we will check for you if it is compatible with the hood cover.
          • Liner Only (Without Motor): Liner with lights, switches, and stainless steel baffle filters. If you would like to select this option, please contact us.

        SPECIFICATIONS

        sinda internal motor specs

        sinda remote blower specs

        sinda ductless range hood specs

        APRON PATTERN



        sinda

        APRON PATTERN PLACEMENT

         pattern placement





        FINISH

        SINDA will provide free finish sample to ensure you get the actual colors and textures of copper products.

        Order free sample, please click here.



        ainda copper range hood copper sinks finish



          If you have any custom ideas, drawings and questions, please feel free contact us.

          This H7TRA2 tuscan copper range hood is one of our most special design.  It is also easy to install and can be custom made to your specifications. Featuring three side, three classic straps with exquisite rivets on the front and customizable apron.

          A kitchen is a place the family gathers every day. Why not add some color to turn your kitchen into a gourmet paradise?

          SINDA copper range hood is not only the jewelry in your kitchen but also an important appliance to help your remove smoke, odor, and grease from the air in your kitchen.

          Therefore you and your family can breathe easier and you can cook more comfortably.

          Size

          • Width: Please choose the width of your copper range hood to begin.
          • Height: Please choose the height you want after you choose the width.
          • Custom: If you want to order other sizes, welcome to customize. Please email us at support@sindacopper.com





          Ventilation Options  (Please choose from 4 types of systems)

          • Internal Motor(Motor In Hood): Integrated ventilation system with motor and liner inside the range hood.
          • Remote Blower(Motor In Attic): The motor is not in the hood itself but positioned inside your ductwork, between the range hood and the end of your ducting. The remote blower is much quieter than the internal motor.
          • Recirculating Through Hood (Ductless Conversion): Recirculating cooker hoods recycle air back into the kitchen after removing grease and cooking odors, remote controller is included in the package.
          • Hood Only: Please send the dimension or specification of the vent to us by email after ordering, we will check for you if it is compatible with the hood cover.

          sinda vent

          You may click here for more information about copper range hoods.



          Download:

          SINDA Copper Range Hood Installation Guide

          SINDA Insert Installation Guide and User Manual



          • For more information about Liner + Internal Motor, please click here.
          • For more information about Liner + Remote Blower, please click here.
          • For more informaton about Liner + Internal Motor + Ductless Conversion Kit, please click here.

          Care

          About SINDA copper products:
          • Our copper product has been treated with a clear lacquer sealant that is tarnish resistant.
          • Do not use copper polish/cleaners, abrasive materials, acidic or abrasive cleaners or harsh chemicals such as acetone, which will compromise the integrity of the integrity of the lacquer finish.

          Items you will need:
          • Mild non-acidic liquid detergent or soap
          • Soft non-abrasive cotton cloth
          • Warm water

          Maintenance process:

          Use warm water, mild non-acidic liquid detergent or soap and soft non-abrasive cotton cloth to remove any grease or grime.

          Warranty

          Sinda Copper offers the following warranty from the date of purchase:
          • The lifetime warranty for copper hood cover

          • 2–year limited warranty for the hood liner/insert

          • 10–year limited warranty for the motor/blower

          • 1-year limited warranty for the copper kitchen sink
